MAX98365AEVSYS#

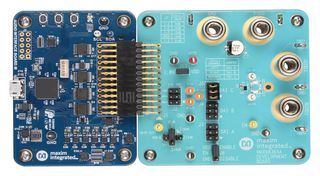

MAX98365A evaluation system (EV system) is a fully assembled and tested system that evaluates the MAX98365A mono Class-D audio amplifier. The EV system consists of the MAX98365 development board, Maxim’s audio interface board III (AUDINT3), and a USB cable. It is recommended that the DEV board be evaluated with the AUDINT3 board, as an EV system. MAX98365A support the standard I2S interface and support an 8-channel TDM digital audio interface. The AUDINT3 board provides a USB-to-PCM interface in addition to a 1.8V VDD supply needed to evaluate the DEV board. The MAX98365 DEV board requires one additional supply input, 3V to 14V (PVDD) when evaluating using the AUDINT3 board.

• 3V to 14V single-supply operation
• Five selectable gains (9.5dB, 12.5dB, 15.5dB, 18.5dB, and 21.5dB)
• Audio channel select (left, right and mono mix)
• Filter-less operation
• Low EMI
• Complete I2S evaluation system with no volume ramping

内容

MAX98365 development board, Audio interface board III, Micro-USB cable.
