Q6F3BXXB12E
发光二极管指示器 面板安装, 黑铬挡板, 蓝色, 12 VDC, 6 mm, 20 mA, 8 mcd, IP67
37 有货
需要更多？
37 件可于 5-6 个工作日内送达(英国 库存)
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY99.540 (CNY112.4802) |
| 5+ | CNY93.800 (CNY105.994) |
| 10+ | CNY88.060 (CNY99.5078) |
| 20+ | CNY79.810 (CNY90.1853) |
| 50+ | CNY71.550 (CNY80.8515) |
包装规格：每个
最低: 1
多件: 1
CNY99.54 (CNY112.48 含税)
添加部件编号/注释行
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
该代码将添加到订单确认、发票、发货通知、订单确认电子邮件和产品标签中。
产品概述

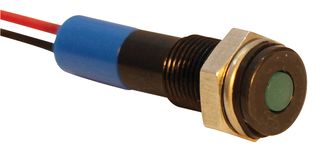

The Q6F3BXXB12E from APEM is a Q series 6mm panel mount LED indicator with black chrome plated brass bezel finish and moulded polycarbonate rear body. Typical used at process controls, professional electrical appliances, communications, radar, civil engineering vehicles, trucks, diggers, crane, trains HVAC, energy management, lifts and machine tools.
- Operating voltage range from 10.8 to 13.2VDC and 20mA operating current
- 3mm coloured diffused epoxy lens or 3mm water clear super bright LEDs
- 8mcd standard intensity, flush bezel style
- 200mm long wire, supplied with fixing nut and spring washer
- Fixed light illumination
- Panel sealed up to IP67 according to EN60529, UL recognized component
- Viewing angle range from 30° to 100° (dependant on model), life expectancy is 100000hours
- Operating temperature range from -40°C to +85°C
- Max reverse voltage is 5V and forward voltage is 3.8V
- Blue LED colour
技术规格
LED颜色
蓝色
装配孔直径
6mm
发光强度
8mcd
产品范围
Q
工作电压
12VDC
正向电流 If
20mA
IP/NEMA级别
IP67
相关产品
找到 1 件产品
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：Great Britain
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：Great Britain
进行最后一道重要生产流程所在的地区
税则号：85414100
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
下载产品合规证书
产品合规证书
重量（千克）：.006123
