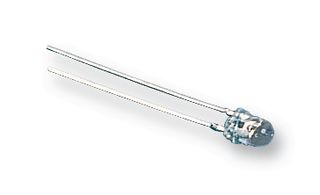

HLMP-KB45-A0000
发光二极管, 蓝色, 通孔安装, T-1 (3mm), 20 mA, 3.2 V, 470 nm
需要更多？
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY8.070 (CNY9.1191) |
| 10+ | CNY5.690 (CNY6.4297) |
| 25+ | CNY5.200 (CNY5.876) |
| 50+ | CNY4.710 (CNY5.3223) |
| 100+ | CNY4.220 (CNY4.7686) |
| 500+ | CNY3.560 (CNY4.0228) |
产品信息
产品概述
HLMP-KB45-A0000 is a blue LED lamp designed in industry standard T-1 package with clear and non diffused optics. It is ideal for use as indicators and for general purpose lighting. It offers colour differentiation as blue is attractive and not widely available. 470λd typical colour, dominant wavelength, 464λpeak typical peak wavelength and 40° typical viewing angle. Typical applications include status indicators, small message panel and running and decorative lights for commercial use.
- General purpose leads
- Reliable and rugged
- Binned for colour and intensity
警告
Device is class 1C HBM ESD sensitive per JEDEC Standard. Please observe appropriate precautions during handling and processing. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
技术规格
蓝色
T-1 (3mm)
3.2V
30mcd
圆形
-
No SVHC (21-Jan-2025)
通孔安装
20mA
470nm
40°
-
-
相关产品
找到 1 件产品
法律与环境
进行最后一道重要生产流程所在的地区原产地：Malaysia
进行最后一道重要生产流程所在的地区
RoHS
RoHS
产品合规证书
