PRM-5-EUR KIT

The PRM-5-EUR KIT from Beha-Amprobe is a phase rotation tester. It is a simple and reliable tester to check for proper phase sequence in 3-phase cables and receptacles. This phase rotation tester is durably constructed with a rubber out casing and CAT IV 600V rated making this tool essential for phase rotation testing in commercial and industrial environment on electrical systems up to 700V. It provides phase sequence test to validate correct connections and identifies faulty 3-phase wiring with de-energized phases or incorrectly wired receptacles. The meter complies with CE IEC/EN 61557-1/-7IEC/EN 61010-1 3rd edition to CAT IV 600 V, pollution degree 2, IEC/EN 61010-2-030, IEC/EN 61010-031 for test leads EMC IEC/EN 61326-1.

• 3-phase wire sequence indication, error display
• Drop-proof to 1 meter
• Voltage range (frequency) from 100V to 700V (16Hz to 400Hz)
• Nominal test current of less than 3.5mA
• Operating altitude up to 2000m
• Operating temperature range from 0°C to 40°C
• Dimension is 65mm x 137mm x 33mm (W x D x H) and weight is 253g

内容

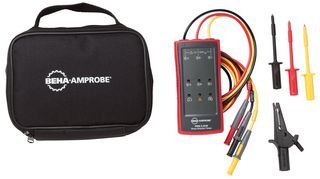

PRM-5-EUR phase rotation tester, Non-detachable test leads (black, red, yellow), 3 test probes (black, red, yellow), Alligator clip (black), Users manual, Carrying case.

警告

Do not touch voltages of greater than 30VAC RMS, 42VAC peak, or 60VDC. These voltages may cause electrical shock hazards.

注释

任何部件移除后, 请勿使用PRM-5-EUR. 校准服务可用于此产品. 可选择标准认证服务, 或国际认可的UKAS认证校准, 请访问我们的校准页面去了解更多详情.
