CFTBN/1
保险丝接线端子, 1 路, 4 mm², 螺丝, 20 A
3,800 您现在可以预订货品了
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY9.080 (CNY10.2604) |
| 10+ | CNY7.980 (CNY9.0174) |
| 100+ | CNY7.540 (CNY8.5202) |
| 500+ | CNY7.100 (CNY8.023) |
| 1000+ | CNY6.760 (CNY7.6388) |
| 2500+ | CNY6.630 (CNY7.4919) |
产品信息
产品概述

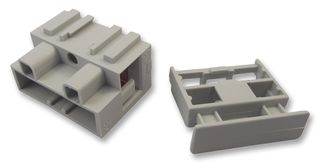

The CFTBN/1 is a 1-pole 450V/20A Fused Terminal Block with UL94-V0 flame retardant PA moulding, nickel plated brass terminal, phosphor bronze fuse clip, stainless steel wire protector, M3 screw, interlocking fuse holder, earth screw facility, wire protector on fused pole. It features anti rotation spigot, wire protectors on earth pole, 16mm fixing pitch and easily cut to size. It accepts 4mm² (2.5mm² with wire protector) cable entry. It meets creepage and clearance requirements of IEC (8mm). UL, IMQ, VDE, CE, SEMKO, FIMKO approved, on non earth version.
- 250VAC/13A Fuse holder rating
- IP20 Finger protection rating
警告
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
技术规格
1路
螺丝
450V
-
4mm²
20A
5mm x 20mm
No SVHC (21-Jan-2025)
技术文档 (1)
法律与环境
进行最后一道重要生产流程所在的地区原产地：Great Britain
进行最后一道重要生产流程所在的地区
RoHS
RoHS
产品合规证书
