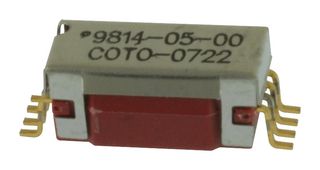

9814-05-00TR

The 9814-05-00TR is a surface mount Reed Relay with gull wing lead style. This 9814-series relay has SPST-NO hermetically sealed contacts for long life. Ideally suited to the needs of automated test equipment, instrumentation and telecommunications requirements. The external magnetic shield reduces interaction between parts in high density boards. Small size plus added features allow for high density packing and make these relays ideal for designs such as high speed, high pin count VLSI testers where high speed, small size and high performance are all needed.

• High insulation resistance
• Coaxial shield for 50Ω impedance
• High reliability
• -20 to 85°C Operating temperature range
