6069-410-040

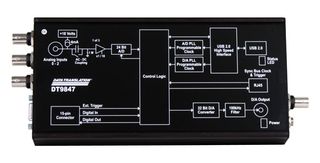

DT9847-3-1 is a DT9847 series high-accuracy, dynamic signal acquisition module designed for sound and vibration applications. This USB-based, high-speed dynamic signal analyser with three simultaneous 24-bit IEPE sensor inputs, up to 216KS/s/ch sample rate, one 32-bit analogue output, and eight digital I/O. It features built-in IEPE signal conditioning for direct measurements from sensors like accelerometers and microphones. Combine the DT9847 with the ready-to-measure QuickDAQ application to create a powerful FFT Analyser instrument. Additionally, all Data Translation devices include comprehensive driver and software support, and interface tools for LabVIEW™ and MATLAB® programmers.

• Simultaneous analogue input and analogue output operations (continuous or waveform mode)
• Operates on external USB power
• Input range of ±10V with software-selectable gains of 1 and 10 for effective input range of ±10 & 1V
• Support IEPE i/p including use of 4mA current source with 18V compliance voltage for AC/DC coupling
• Supports a software-programmable trigger source to start the analogue output operation
• Internal clock source (shared between the analogue input and analogue output subsystems)
• Sync bus (RJ45) connector for synchronizing acquisition on up to four DT9847 Series modules
• Requires use of an external +5VDC to +24VDC power supply
• Supported by Windows® 10/8/7/Vista® 32/64-bit OS

内容

Dynamic signal analyser, USB cable, Power supply 5VDC output, Printed insert: software quick start, MCC packaging assembly/foam, etc.

注释

In addition, we have calibration services for this product (Europe only). Visit our calibration service page to see details of what options are available.
