F6-HPS-22

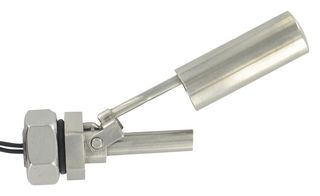

F6-HPS-22 is a series F6 horizontal float level switch designed to mount through the walls of tanks or other vessels and unique applications to provide point level indication.

• Suitable for water, oils, chemicals applications
• 316SS float and stem
• Temperature limit 392°F (200°C)
• Pressure limit 300psig (20.7bar), 0.60 min specific gravity
• Electrical rating 30VA: 0.14A at 220VAC
• 22AWG 61cm wire leads
• 1/2" NPT (int/ext) mounting
