MAFS-06

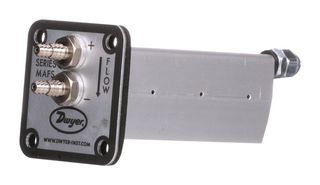

MAFS-06 is a series MAFS metal averaging flow sensor ideal for use with Dwyer® precision air velocity gauges, transmitters and switches. The series MAFS uses evenly distributed total and static pressure measuring points to deliver an accurate measurement of velocity pressure in a duct. Typical applications include VAV air flow measurement, fume hood exhaust flow verification and HVAC retrofit air flow measurement.

• 6" probe length
• Blade design limits disruption of air stream
• Lightweight aluminium construction
• Flange mount for rectangular or square ducts
• Blade profile provides enhanced performance and minimal flow disruption
• Minimum design flow of 400FPM (2m/s)
• Maximum design flow of 12,000FPM (60.91m/s)
• Dual barb for 3/16" or 1/4" ID tubing process connections
• Aluminium AA6063 wetted materials
• Maximum temperature is 400°F (204°C) and gasket: -31 to 230°F (-35 to 110°C)
