P8-11

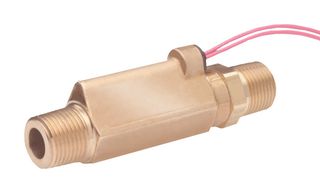

P8-11 is a P8 series high pressure brass flow switch. It is ideal for high in-line pressures. Application includes industrial cleaning equipment, high pressure lubrication systems.

• 0.25GPM (.95LPM) actuation set point
• Less susceptible to clogging than other high in-line pressure switches with 100 micron filtration
• Brass housing wetted material, 1500psi (103.4bar) pressure limits
• Accuracy is ±20% of set point
• 22AWG, 24˝ (61cm), polymeric leads electrical connection
• 3/8˝ male NPT process connections
• Temperature limits range from -28 to 135°C
