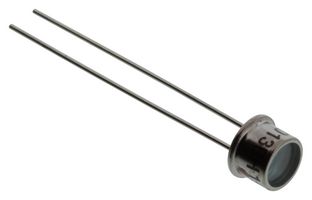

VTB-1013BH
光电二极管, 35°半灵敏度, 20pA暗电流, 580nm, TO-46-2
可订购
制造商标准交货时间：17 周
有货时请通知我
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY139.860 (CNY158.0418) |
| 5+ | CNY132.310 (CNY149.5103) |
| 10+ | CNY124.150 (CNY140.2895) |
| 50+ | CNY118.950 (CNY134.4135) |
| 100+ | CNY112.390 (CNY127.0007) |
| 250+ | CNY109.350 (CNY123.5655) |
包装规格：每个
最低: 1
多件: 1
CNY139.86 (CNY158.04 含税)
添加部件编号/注释行
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
该代码将添加到订单确认、发票、发货通知、订单确认电子邮件和产品标签中。
产品信息
产品概述
The VTB-1013BH is a blue enhanced silicon Photodiode designed for spectral response between 330 and 720nm. This series of P on N silicon planar photodiode has been designed for optimum response through the visible part of the spectrum. This photodiode is primarily intended to be used in photovoltaic mode but may be used with a small reverse bias. This has also been designed to exhibit very high shunt resistance, a characteristic which leads to low offsets when used in high gain trans-impedance op-amp circuits. Cathode is common to the case. This diode has very high shunt resistance and has good blue response.
- UV to visible spectral range
- Integral IR blocking filter
- Small active area
- Very low dark current
- Very high shunt resistance
- -40 to 110°C Operating temperature range
技术规格
二极管封装类型
TO-46
汽车质量标准
-
产品范围
VTB
技术文档 (1)
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：Philippines
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：Philippines
进行最后一道重要生产流程所在的地区
税则号：85414900
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
下载产品合规证书
产品合规证书
重量（千克）：.000342
