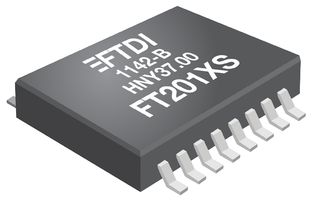

FT201XS-R

FT201XS-R is an USB full-speed to I²C IC with USB charger detection. It offers a compact bridge to I²C devices. This device is an I²C, capable of operating up to 3.4MBit/s, with low power consumption (8mA). The FT201X includes the complete FT-X series feature set and enables USB to be added into a system design quickly and easily over an I2C interface.

• Single chip USB to IC interface, configurable CBUS I/O pin
• Entire USB protocol handled on the chip, no USB specific firmware programming required
• Device supplied pre-programmed with unique USB serial number
• Supports bus powered, self powered and high-power bus powered USB configurations
• Integrated +3.3V level converter for USB I/O, true 3.3V CMOS drive output and TTL input
• Configurable I/O pin output drive strength, integrated power-on-reset circuit
• Internal 3.3V/1.8V LDO regulators, low USB bandwidth consumption
• UHCI/OHCI/EHCI host controller compatible, USB 2.0 full speed compatible
• Ambient operating temperature range from -40°C to +85°C
• 16-pin SSOP package
