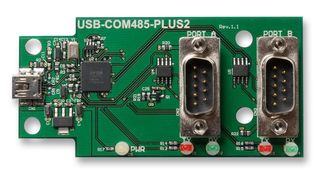

USB-COM485-PLUS2

The USB-COM485-PLUS2 module is a single USB interface to two independent RS485 ports, communication device. The integrated electronics of the USB-COM485-PLUS2 utilise the FTDI FT2232H (USB 2.0 Hi-Speed device) and includes RS485 level shifters plus Power/TXD/RXD LEDs to provide a visual indication of data traffic through the module. The module uses a standard USB-B device connector for connection to an upstream host or hub port. RS485-level signals are available on an industry-standard DE-9P connector. The maximum RS485-level data rate is 10Mbps. The USB-COM485-PLUS2 module requires USB device drivers, which are used to make the USB-COM485-PLUS2 appear as a Virtual COM Port (VCP). This allows existing serial communications software such as HyperTerminal to exchange data through the USB-COM485-PLUS2 to a legacy RS485 peripheral device.

• Adds dual RS-485 serial port by connecting to a USB 2.0 Hi-Speed interface
• Easy plug & play installation and RS-485 device connection
• Operates with USB 1.1 & 2.0 Host and Hub ports
• Industry standard FTDI chip set & device drivers for maximum compatibility
• Microsoft Windows WHQL-certified, Mac OS X, Linux and Windows CE device drivers
• Installs as a standard Windows COM port
• Supports Windows Server 2008, 2003, Vista, XP, 2000, Windows CE, Linux, Mac OS X
• FIFO with 4K byte transmit buffer, 4K byte receive buffer
• RS-485 data signals: Data+, Data-, GND. Serial port speed up to 10Mbps
• Powered by USB port. No external power adapter required. +5V output available
