需要更多?
数量 | 价钱 (含税) |
---|---|
1+ | CNY243.860 (CNY275.5618) |
5+ | CNY238.990 (CNY270.0587) |
10+ | CNY234.200 (CNY264.646) |
25+ | CNY229.520 (CNY259.3576) |
50+ | CNY224.940 (CNY254.1822) |
产品信息
产品概述

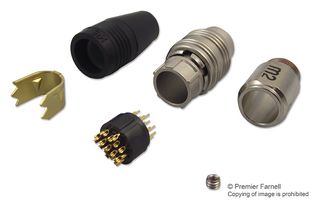

The HR25A-9P-20P is a 20-position male miniature Circular Connector with gold plated phosphor bronze contacts and a PPS insulator. It has nickel plated zinc alloy outer shell and comes with a ethylene propylene rubber gasket and chloroprene rubber boots. The HR25A series plug has soldering wire termination method and push-pull locking style. It is recommended for use with 28AWG wire. It features polarized for correct insertion by a straight push-in movement. Built-in release mechanism securely locks mated connectors while allowing quick connection by simply pulling on the plug release collar. Secure locks between the metal shells provide excellent ground connection for the application requiring EMI protection.
- Small size, high density
- Small size, high density
- Metal shells
- 7mm Cable outer diameter
- 1A Rated current
- 30VAC, 42VDC Rated voltage
- 30mΩ Maximum contact resistance
- 1000MΩ Minimum insulation resistance
- 100VAC for one minute Withstanding voltage
- 1000 Mating/unmating cycles
技术规格
圆形工业
电缆安装插头
焊接引脚
黄铜锌合金主体
磷青铜
Imidazolidine-2-thione; (2-imidazoline-2-thiol) (23-Jan-2024)
HR25A系列
20触点
-
-
金
相关产品
找到 2 件产品
法律与环境
进行最后一道重要生产流程所在的地区原产地:China
进行最后一道重要生产流程所在的地区
RoHS
RoHS
产品合规证书
