IM240M6Z1BALMA1
智能功率模块 (IPM), IGBT, 600 V, 4 A, 1.9 kV, SOP23, CIPOS Micro

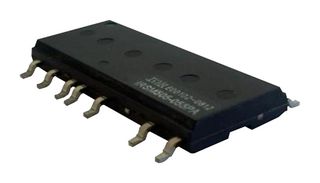

图片仅用于图解说明，详见产品说明。
478 有货
需要更多？
478 件可于 5-6 个工作日内送达(英国 库存)
该库存量售罄后，将不再备货
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY103.710 (CNY117.1923) |
| 5+ | CNY97.550 (CNY110.2315) |
| 10+ | CNY91.380 (CNY103.2594) |
| 50+ | CNY83.920 (CNY94.8296) |
| 100+ | CNY76.460 (CNY86.3998) |
| 250+ | CNY71.550 (CNY80.8515) |
包装规格：每个
最低: 1
多件: 1
CNY103.71 (CNY117.19 含税)
添加部件编号/注释行
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
该代码将添加到订单确认、发票、发货通知、订单确认电子邮件和产品标签中。
产品信息
制造商INFINEON
制造商产品编号IM240M6Z1BALMA1
库存编号3212438
产品范围CIPOS Micro
也称为IM240-M6Z1B, SP002290846
技术数据表
IPM 电源装置IGBT
额定电压 (Vces / Vdss)600V
电流值 (Ic / Id)4A
隔离电压1.9kV
IPM 外壳类型SOP23
IPM系列CIPOS Micro
产品范围CIPOS Micro
SVHC(高度关注物质)No SVHC (27-Jun-2018)
产品概述
IM240-M6 Series are 3-phase Intelligent Power Modules (IPM) designed for advanced appliance motor drive applications such as energy efficient fans and pumps. These advanced IPMs offers a combination of low VCE(sat) RC-DF IGBT technology and the industry benchmark half-bridge high voltage, rugged driver in a familiar package.
- 600V 3-phase inverter including gate drivers & bootstrap function
- Low 2.3V VCE(sat) (typ, 25°C, 4A) RC-DF IGBT
- UL certified temperature sense (NTC)
- Advanced input filter with shoot-through protection
- Optimized dV/dt for loss and EMI trade offs
- Open-emitter for single and leg-shunt current sensing
- 3.3V logic compatible
- Driver tolerant to negative voltage (-VS)
- Undervoltage lockout for all channels
- Isolation 1900VRMS, 1min
警告
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
技术规格
IPM 电源装置
IGBT
电流值 (Ic / Id)
4A
IPM 外壳类型
SOP23
产品范围
CIPOS Micro
额定电压 (Vces / Vdss)
600V
隔离电压
1.9kV
IPM系列
CIPOS Micro
SVHC(高度关注物质)
No SVHC (27-Jun-2018)
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：China
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：China
进行最后一道重要生产流程所在的地区
税则号：85423990
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:No SVHC (27-Jun-2018)
下载产品合规证书
产品合规证书
重量（千克）：.0007
