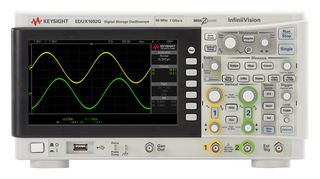

EDUX1002G

The EDUX1002G from Keysight Technologies is an InfiniiVision 1000X-series 50MHz, 2 channel oscilloscope with function generator. Educator resources are included standard and this EDU model is especially good for students and beginners. With the unique, Keysight-designed MegaZoom IV custom ASIC technology, the InfiniiVision 1000X-series delivers up to 50,000wfms/sec. Waveform tools include quick access to waveform math like FFT, add, subtract, multiply and divide. Reference waveforms allow quick comparison of stored waveforms. External trigger can be used as a 3rd channel and displayed on-screen to create a bus-type display. Built-in WaveGen supports sine, square, ramp, pulse, DC and noise with amplitude and frequency modulation. The built-in function generator enables to generate signals user needs to quickly stimulate design. Signals are easily synchronized for measuring stimulus/response testing including frequency response analysis (Bode gain and phase).

• Maximum sample rate is 1GSa/s
• Maximum memory depth is 100Kpts
• 7inch TFT LCD WVGA display
• Calculated rise time (10 to 90%) is ≤ 7ns
• Built-in USB host and USB device ports make PC connectivity easy
• Access 24 built-in automatic measurements
• Test quickly and easily with a simple, intuitive user interface and built-in help & training signals
• Dimension is 314mm (12.4 in) x 165mm (6.5 in) x 130mm (5.1 in)
• UL61010-1 3rd edition, CAN/CSA-C22.2 no. 61010-1-12 safety
• DVM (digital voltmeter DSOXDVM) upgrade available free for 1000 X-Series, product registration required to download via www.keysight.com/find/1000X-Series-DVM
• The Educator’s Oscilloscope Training Kit (DSOXEDK) upgrade is also free and integrated with all InfiniiVision X-Series. Visit www.keysight.com/find/scopes-edu

内容

A BenchVue software license (BV0004B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences. EDUX1002G oscilloscope, (2) N2142A 75 MHz 10:1/1:1 switchable passive probes, Secure erase, Built-in help language support, Interface language support GUI, Power cord.

注释

校准服务可用于此产品. 可选择标准认证服务, 或国际认可的UKAS认证校准. 请访问我们的校准页面去了解更多详情.
