压接工具, 杠杆操作, 手动, 20-10AWG Non-Insulated Open Plug Type Connectors
图片仅用于图解说明，详见产品说明。
8 有货
需要更多？
8 件可于 5-6 个工作日内送达(英国 库存)
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY3,176.680 (CNY3,589.6484) |
包装规格：每个
最低: 1
多件: 1
CNY3,176.68 (CNY3,589.65 含税)
品項附註
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
产品概述

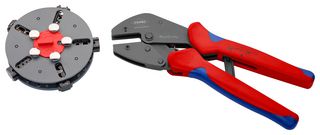

97 33 02 is a KNIPEX MultiCrimp® lever action crimping plier with changer magazine. The crimping dies 97 49 xx for the crimp system pliers 97 43 200 are not compatible with the KNIPEX MultiCrimp 97 33 01/02. Consistently high crimping quality thanks to precision dies and ratchet mechanism (unlockable).
- Just one tool for the most common crimping applications
- Crimping dies changed quickly and easily without any additional tool
- Sorted and protected storage of the interchangeable dies in a round magazine
- Comfortable, powerful crimping pliers in professional quality
- Same reliable crimping results as with fixed crimping dies
- Handles with multi-component grips
- Dimension is 250 x 75 x 28mm
- Suitable for non-insulated open plug type connectors (plug width 4.8 + 6.3mm)
- Capacity in square millimetres is 0.25 to 10.0mm²
- 20AWG to 10AWG wire size
内容
Crimping pliers, Change magazine.
技术规格
压接工具类型
手动
产品范围
-
适用于
20-10AWG Non-Insulated Open Plug Type Connectors
技术文档 (1)
相关产品
找到 1 件产品
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：Germany
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：Germany
进行最后一道重要生产流程所在的地区
税则号：82032000
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：不适用
RoHS 邻苯二甲酸盐合规:不适用
下载产品合规证书
产品合规证书
重量（千克）：.995
