MD-ISK-S10-1000-P5-ANSI

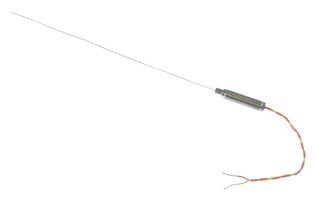

MD-ISK-S10-1000-P5-ANSI is an ANSI mineral insulated thermocouple with threaded pot. Flexible mineral insulated probe with 310 stainless steel sheath with M8 x 1.0mm fine pitch threaded pot seal & tails. 310 stainless steel provides good corrosion and oxidation resistance to suit a wide range of processes, satisfactorily operates in sulphur bearing atmospheres. Typical applications include brick and cement kilns, glass industry, heat treatment and annealing furnaces, power stations, flues, heat exchangers etc.

• Mineral insulated type K thermocouple
• Highly flexible, sheath can be bent/formed to suit many applications and processes
• Insulated hot junction, probe temperature range from -40°C to +750°C
• M8 x 1.0mm fine pitch threaded pot seal (200°C)
• Termination is 100mm PFA twin twisted 7/0.2mm tails, colour coded in accordance with ANSI MC96.1
• Sensor type is type K(nickel chromium/nickel aluminium) to ANSI MC96.1
• Single element, junction insulated from sheath (protection against spurious electrical signals)
• Pot seal rating is 200°C
• 1mm probe diameter, 1000mm probe length
• Yellow positive tail wire and red negative tail wire
