RAA-S2TH-4.5-50-NP-2.0-C5-T
探头, Thermistor, w/2m Cable, 10kohm, 50 mm, 4.5 mm, 不锈钢
图片仅用于图解说明，详见产品说明。
6 有货
需要更多？
6 件可于 5-6 个工作日内送达(英国 库存)
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY675.890 (CNY763.7557) |
| 5+ | CNY657.120 (CNY742.5456) |
| 10+ | CNY639.330 (CNY722.4429) |
| 25+ | CNY621.900 (CNY702.747) |
| 50+ | CNY607.600 (CNY686.588) |
| 100+ | CNY596.800 (CNY674.384) |
| 500+ | CNY502.710 (CNY568.0623) |
包装规格：每个
最低: 1
多件: 1
CNY675.89 (CNY763.76 含税)
添加部件编号/注释行
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
该代码将添加到订单确认、发票、发货通知、订单确认电子邮件和产品标签中。
产品信息
制造商LABFACILITY
制造商产品编号RAA-S2TH-4.5-50-NP-2.0-C5-T
库存编号4461817
也称为XF-2932-FAR
技术数据表
长度50mm
外径4.5mm
探头体材料不锈钢
产品范围-
SVHC(高度关注物质)No SVHC (21-Jan-2025)
产品概述

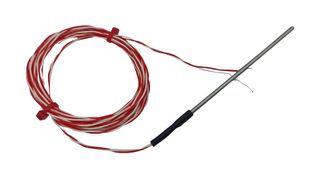

RAA-S2TH-4.5-50-NP-2.0-C5-T is a general-purpose 10K thermistor probe with 2m PTFE lead. This 2-wire 10K NTC thermistor is housed in a stainless-steel sheath with a temperature range of -50 to +150°C, and is a versatile temperature-sensing device. The stainless-steel sheath provides durability and protection, making this thermistor ideal for a wide range of applications, from industrial processes to consumer electronics and scientific research. Applications include environmental monitoring (HVAC systems, climate control devices) and industrial processes (equipment monitoring, process control).
- 2 wire, 10K thermistor, 4.5mm tube diameter, 50mm tube length, 2mm cable length
- PTFE insulated twisted leads cable type
- Bare tails cable termination
- Accuracy is +/- 0.2K (over 0-70°C)
- Operating temperature range from -50°C to 150°C
技术规格
长度
50mm
探头体材料
不锈钢
SVHC(高度关注物质)
No SVHC (21-Jan-2025)
外径
4.5mm
产品范围
-
技术文档 (1)
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：Great Britain
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：Great Britain
进行最后一道重要生产流程所在的地区
税则号：85334010
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:No SVHC (21-Jan-2025)
下载产品合规证书
产品合规证书
重量（千克）：.00001
