产品信息
产品概述

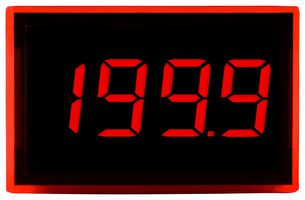

The SP300 is a 8-pin version LED Voltmeter with ultra low profile. It features a 3-1/2-digit LED display with 9.4mm digit height. With 200mVDC full scale reading, auto-zero and auto-polarity, this meter plugs directly into an 8-way SIL socket and can be fitted into a panel via the fixing clip. Splash-proof protection is achieved by fitting the seal supplied. It is a popular part, normally stocked in high quantity and suitable for new designs. It offers a negative rail generator which enables the meter to measure a signal referenced to its own power supply 0V. The bright LED display ensures excellent reliability under low light conditions. The module is easily fitted into the panel, using the fixing clip provided. It will suit high and low volume applications. The design of the panel meter housing and seal ensures splash-proofing in many applications.
- Programmable decimal points
- Simplified connection
技术规格
3-1/2
0mV 至 200mV
21.3mm
4.75V
0°C
-
直流电压
9.4mm
34mm
5.25V
50°C
No SVHC (07-Nov-2024)
技术文档 (1)
法律与环境
进行最后一道重要生产流程所在的地区原产地:China
进行最后一道重要生产流程所在的地区
RoHS
RoHS
产品合规证书
