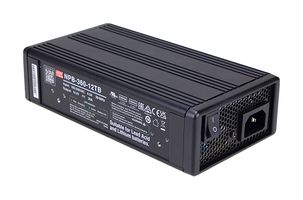

NPB-360-12TB

NPB-360-12TB is a NPB-360 series charger for compatible with lead-acid (flooded, gel, AGM) and li-ion (lithium iron, lithium manganese) batteries. This product is a class I power unit (with FG), equipped with a standard IEC320-C14 AC inlet and two or three-stage charging control. Typical applications are radio system backup solution, electric scooter charger, camping car, buses, heavy duty truck, specialty vehicles, surveillance system, portable power tools.

• 90~264VAC universal AC input, built-in PFC, single output
• Charger for compatible with lead-acid and li-ion batteries
• Wide adjustable output range, 2 or 3 stage selectable by DIP S.W
• No load power consumption is <lt/> 0.15W(AC S.W off), terminal block output connector
• Szeroki zakres temperatury roboczej: -30℃ do +70℃, 3 lata gwarancji
• Short circuit / overvoltage /overtemperature / battery reverse polarity protection
• Comply with UL/EN62368-1 and EN60335-1/2-29 dual certification
• Front panel LED indicator for charging status, fan ON-OFF control (depends on internal temperature)
• 360W output power, 14.4V output voltage, 20A output current
• Dimension is 96mm width x 49mm height x 180mm depth
