AC164131

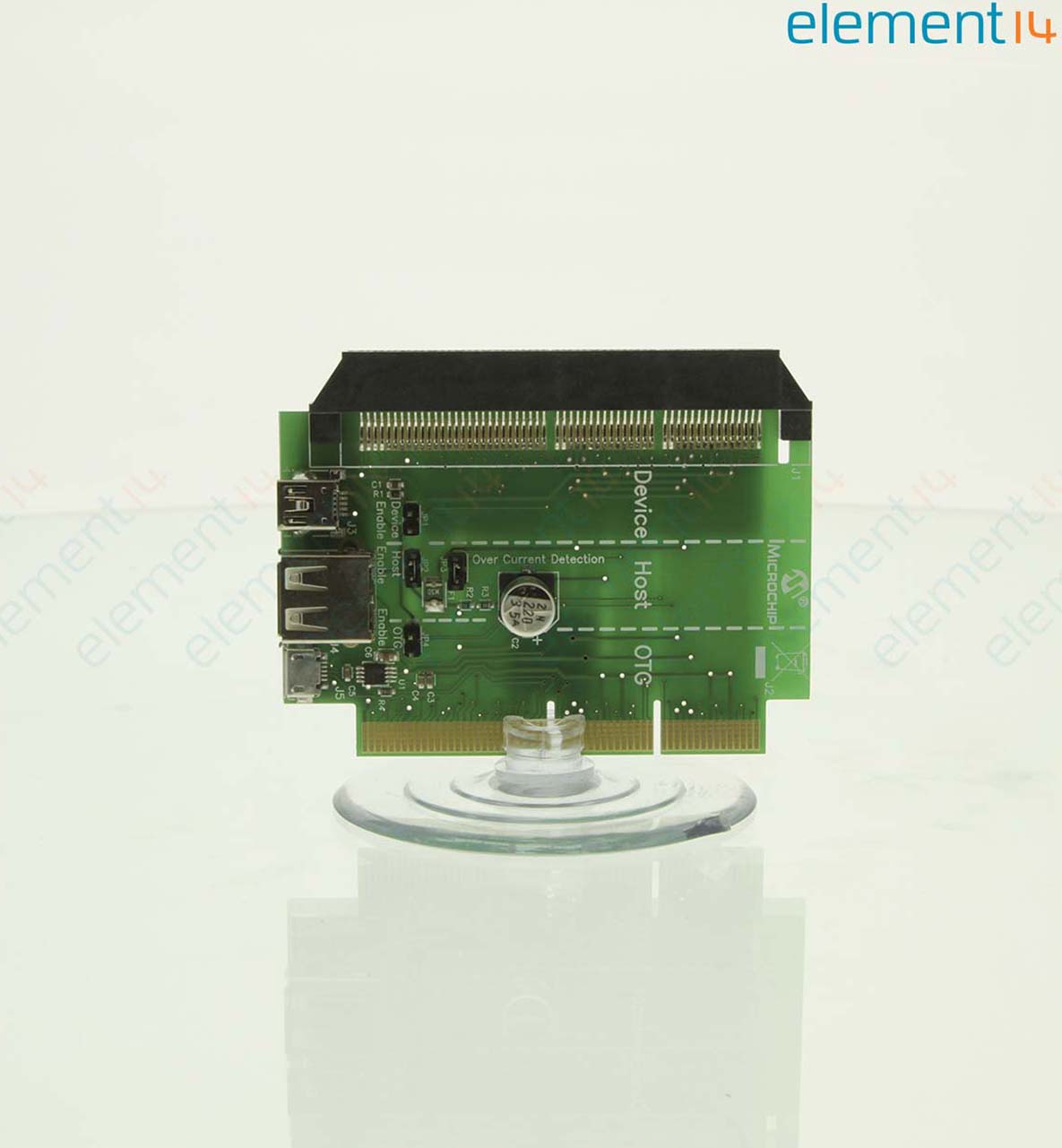

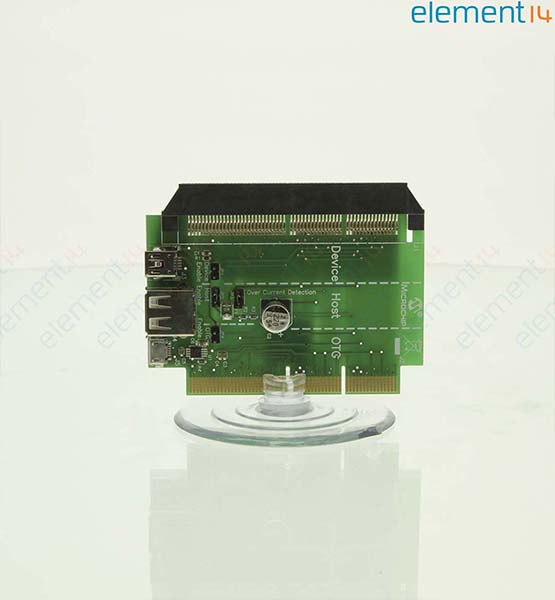

The AC164131 an USB PICtail Plus Daughter电路板是一个USB演示电路板 用于评估 16和32位USB product lines using the Explorer 16 开发电路板. This模块 enables USB 硬件 connectivity when using an Explorer 16和USB capable plug in模块.提供support 用于USB设备, host,和on the go 开发. To get started, an Explorer 16 开发电路板 is required. The USB PICtail Plus Daughter电路板 can be attached to Explorer 16 开发电路板, either through the J5 连接器, or by attaching to the edge of the Explorer 16 via the horizontal PICtail Plus Daughter电路板 connection 接口. The USB PICtail Plus Daughter电路板 is capable of sourcing 100mA to VBUS when operating as an内嵌型host or in OTG mode. If the desired application requires more than 100mA 用于an内嵌型host application, then a +5V power supply must be attached to the +5V rail of the Explorer 16. OTG应用are limited to sourcing 100mA on VBUS.

• 示例电路用于USB设备, 内嵌主控和On-The-Go (OTG)
• 水平和竖直PICtail Plus子板电路板连接接口
• 电路板上有四个跨接器, 用于选择运行模式和可选功能

注释

仅限90天保修, 保修期到期后, 退货必须经过Microchip处理。
