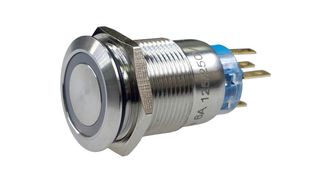

MP-19M11FEW2S

MP-19M11FEW2S vandal-resistant switch is designed to withstand deliberate or accidental damage, tampering, and vandalism in harsh environments. It comes with a round-flat design and SPST configuration. This switch is commonly used in public areas, outdoor installations, industrial settings, and applications where durability and security are paramount. It provides a reliable solution for controlling electrical circuits in demanding environments by offering protection against physical damage, tampering, and environmental hazards, ensuring long-term performance and safety in critical applications.

• SPST, 2P, 6VDC white LED, momentary, anti vandal switch
• 6A 125/250V, 6A 3-48VDC ratings
• 50mohm (maximum) initial contact resistance
• 100Mohm (minimum) insulation resistance
• Dielectric strength is 500VAC for 1 minute
• Mechanical life is 1000,000cycles
• Operation force is 350g ±150g
• Total travel is 3.2mm (maximum)
• Protection level is IP68, IK10 (above the panel)
• Stainless steel shell material

内容

x1 Vandal resistant switch.

注释

Reliable and field-proven safety products.
