MP-210MG-BUA
防暴开关, 19.2 mm, DPST, 开-关, 圆形, 本色
276 有货
需要更多？
276 件可于 5-6 个工作日内送达(英国 库存)
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY151.300 (CNY170.969) |
| 3+ | CNY129.040 (CNY145.8152) |
| 15+ | CNY121.060 (CNY136.7978) |
| 50+ | CNY110.030 (CNY124.3339) |
包装规格：每个
最低: 1
多件: 1
CNY151.30 (CNY170.97 含税)
添加部件编号/注释行
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
该代码将添加到订单确认、发票、发货通知、订单确认电子邮件和产品标签中。
产品概述

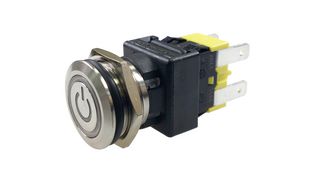

MP-210MG-BUA vandal-resistant switch is designed to withstand deliberate or accidental damage, tampering, and vandalism in harsh environments. It comes with a round design and DPST configuration. This switch is commonly used in public areas, outdoor installations, industrial settings, and applications where durability and security are paramount. It provides a reliable solution for controlling electrical circuits in demanding environments by offering protection against physical damage, tampering, and environmental hazards, ensuring long-term performance and safety in critical applications.
- On-off, double pole, anti vandal switch
- 16(4)A 250V-T125/55 rating
- Withstand voltage is 1500VAC 1minute
- Contact resistance is 20mohm initial (maximum)
- Insulation resistance is DC 100Mohm (minimum) (500V)
- Protection type is IP65 (panel waterproof)
- Mechanical collision protection type is IK07
- Blue LED 200 to 250VAC illumination
内容
x1 Vandal resistant switch.
注释
Reliable and field-proven safety products.
技术规格
产品范围
-
接点配置
DPST
按钮制动器类型
圆形
触点交流电流最大值
16A
触点直流电流最大值
-
IP密封等级
IP65
开关端子
快速连接
面板开口 (高x宽)
-
面板切割孔直径
19.2mm
开关操作
开-关
致动器/开关盖颜色
本色
接触电压 VAC
250V
接触电压 VDC
-
开关安装
面板安装
照明颜色
蓝色
SVHC(高度关注物质)
No SVHC (25-Jun-2025)
技术文档 (1)
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：China
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：China
进行最后一道重要生产流程所在的地区
税则号：85365080
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:No SVHC (25-Jun-2025)
下载产品合规证书
产品合规证书
重量（千克）：.025
