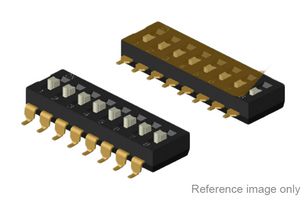

MP-DMR-03-T-V-T/R

MP-DMR-03-T-V-T/R is a 3-position DIP switch. Typical applications include industrial control, automatic machine control and telecommunication. With multiple individual switches packaged together in a single housing, each switch within the package can be independently toggled between its ON and OFF positions, allowing for multiple configuration options within a single unit. Its versatility makes it a popular choice for designers and engineers seeking to incorporate user-configurable options into Its products.

• Low profile for space saving
• Gold contact for high reliability
• Top tape type for washing process
• 25mA, 24VDC contact rating
• 50mohm maximum contact resistance, 100Mohm minimum insulation resistance at 500VDC
• 1000gf maximum operating force, 1mm travel
• 2000 cycles operating life, -20°C to +85°C operating temperature
• High temperature thermoplastic nylon UL 94V-0 cover
• High temperature thermoplastic LCP UL 94V-0 actuator
• Alloy copper contact (gold plated at contact area)

内容

x1 DIP switch, SMD.

注释

Versatile and cost-effective solution for a variety of applications.
