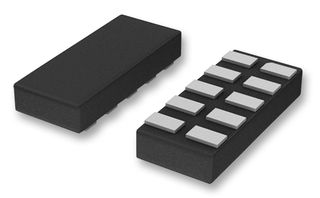

PESD1LVDS,115
静电保护装置, XSON, 10 引脚, 700 mV, PESD1
994 有货
5,000 您现在可以预订货品了
994 件可于 5-6 个工作日内送达(英国 库存)
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY5.390 (CNY6.0907) |
| 10+ | CNY4.550 (CNY5.1415) |
| 100+ | CNY3.150 (CNY3.5595) |
| 500+ | CNY2.500 (CNY2.825) |
| 1000+ | CNY2.390 (CNY2.7007) |
| 5000+ | CNY2.320 (CNY2.6216) |
包装规格：每个
最低: 1
多件: 1
CNY5.39 (CNY6.09 含税)
添加部件编号/注释行
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
该代码将添加到订单确认、发票、发货通知、订单确认电子邮件和产品标签中。
产品概述
PESD1LVDS,115 is an ESD protection for in-vehicle ultra-high-speed interfaces. The device is designed to protect in-vehicle ultra high-speed interfaces in automotive applications, such as Low-Voltage Differential Signalling (LVDS), High-Definition Multimedia Interface (HDMI) and DisplayPort interfaces against ElectroStatic Discharge (ESD). The device is designed for high-speed receiver and transmitter port protection: automotive A/V monitors, displays and cameras.
- AEC-Q101 qualified
- Reverse standoff voltage is 5.5V max at Tamb=25°C
- Reverse leakage current is 1µA max per channel; V=3.0V, Tamb=25°C
- Breakdown voltage is 9V max at I=1mA, Tamb=25°C
- Forward voltage is 0.7V typical at Tamb=25°C
- Input/output to ground capacitance is 0.6pF typ at f=1MHz;Vbias=2.5V, Tamb=25°C
- XSON10 (SOT1165-1) package
- Ambient temperature range from -40°C to +125°C
警告
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
技术规格
钳位电压 最大
-
针脚数
10引脚
功耗 Pd
-
汽车质量标准
AEC-Q101
二极管封装类型
XSON
工作电压
700mV
产品范围
PESD1
SVHC(高度关注物质)
No SVHC (21-Jan-2025)
相关产品
找到 1 件产品
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：Thailand
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：Thailand
进行最后一道重要生产流程所在的地区
税则号：85411000
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:No SVHC (21-Jan-2025)
下载产品合规证书
产品合规证书
重量（千克）：.000242
