337

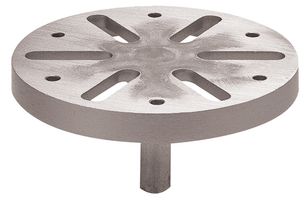

Fixturing Vice Head
- 制造商：
- PANAVISE PANAVISE
- 制造商产品编号:
- 337
- 库存编号
- 2503827
- 也称为:
- GTIN UPC EAN: 729315337006
- 技术数据表:
- 337 Datasheet
产品范围选择器 (Panavise - Vice Heads)
查看全系列相关产品产品信息
技术文档 (1)
CAD 下载
--请选择...
✔
--请选择...
×
条款
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
产品概述
- Ideal for woodworkers and pattern makers
- Work can be attached easily to this universal Fixturing Head
- slots are 11.1mm wide and 30.2mm long, six 6.3mm bolt holes are spaced on a 111.1mm bolt circle
- Flat surface: 5.375" (136.5mm) in diameter
- Shaft is 4.125" (104.8mm) long and 5/8" (15.9mm) in diameter
- Compatible with all 300 series Bases
- Height (shaft to top of head): 3.75" (95.2mm)
也称为
GTIN UPC EAN: 729315337006
可延期交货
由于市场条件的影响，交货时间仅供一般指导，可能会在短时间内发生变化
