PQ344

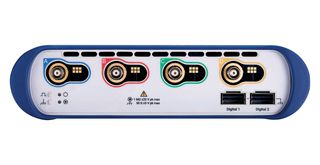

PQ344 is a PicoScope 6428E-D fixed-resolution and FlexRes oscilloscope. With up to 3GHz bandwidth complemented by an extremely fast, real-time sampling rate of 10GS/s, the PicoScope 6428E-D can display single-shot pulses with 100ps time resolution. This level of sampling rate allows you to capture very fast, high-frequency signals with precision, for detailed signal analysis. The 4-gigasample buffer can hold up to two 200ms captures at maximum sampling rate of 10GS/s. This means you can record multiple instances of a signal or capture different signal conditions. It is designed for scientists, engineers and researchers working in high-speed applications who need to capture, measure and analyse sub-nanosecond waveform events – either in stand-alone applications or integrated as part of a larger system. Typical applications include high energy physics, particle accelerators, LIDAR, VISAR, spectroscopy, medical imaging, semiconductor test, non-destructive test and production line test.

• 4 channels and four input ranges per channel (±50 mV, ±100 mV, ±200 mV, ±500 mV)
• 300 000 waveforms per second update rate
• 8-, 10-, or 12-bit flexible resolution (FlexRes)
• Segmented memory/rapid block trigger
• Built-in 50MHz 14-bit function generator/AWG
• Fast transfer of captured data to the host computer via the USB 3.0 SuperSpeed connection
• Drivers and SDK included (Windows, Linux, Mac)
• Programming examples for LabView, MATLAB, Python and C++
• PicoScope software included
• Mask limit testing and user-definable actions, high-resolution time-stamping of waveforms

内容

PicoScope 6000E series PC oscilloscope, User’s guide, 12V power adaptor(universal input), Localized IEC mains lead, 1.8m USB cable, Storage/carry case.
