6405/POM

测试探头连接器, 钳夹, 多功能, 4mm香蕉插头

POMONA 6405/POM
×

图片仅用于图解说明,详见产品说明。

制造商:
POMONA POMONA
制造商产品编号:
6405/POM
库存编号
2917797
技术数据表:
6405/POM   数据表
查看所有技术文档

产品信息

想要查看类似产品?只需在下方选择所需属性并点击按钮 ×


:
钳夹

:
多功能

:
-

:
4mm香蕉插头

:
-

查找类似产品 选择并修改以上属性即可查找类似产品。

技术文档 (1)

产品概述

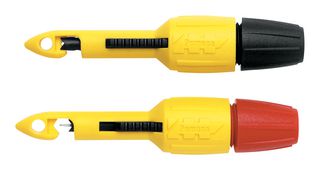

6405/POM is an insulation piercing clip with steel spring and brass jack. The contacts features insulated wires without cutting or stripping insulation. The spring loaded double V-clamp holds wire centred for piercing needle. This clip featured with pierces insulation on wires from 22 to 14AWG. Tiny hole left in insulation can easily be sealed with standard 4mm banana plug test leads with or without safety shroud.
  • High visibility bright yellow body
  • Rotating banana jack will not twist test lead while the needle is screwed into wire
  • Make contact with insulated wires without cutting or stripping insulation
  • Spring loaded double "V" clamp holds wire cantered for piercing needle
  • Pierces insulation on wires from 22 to 14AWG (0.030" through 0.180" diameter)
  • Tiny hole left in insulation can easily be sealed
  • High visibility bright yellow body
  • Red or black color-coded cap for easy identification
  • Rotating banana jack will not twist test lead while the needle is screwed into wire
  • Hardened stainless steel piercing tip, steel spring, brass jack

内容

Two clips (one red and one black).

5 有货 需要更多?

5 英国 有库存,可在 5-6 个工作日内发货

由于市场条件的影响,交货时间仅供一般指导,可能会在短时间内发生变化

CNY536.52 ( 不含税  ) CNY606.2676 ( 含税 )
