D-181-1224-90/9
焊接套管, 带引线, 端子, 3.7 mm, 蓝色 (透明), PVDF (聚偏二氟乙烯), 21.5 mm, 24 AWG
可订购
制造商标准交货时间：22 周
有货时请通知我
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY59.840 (CNY67.6192) |
| 10+ | CNY50.910 (CNY57.5283) |
包装规格：每个
最低: 1
多件: 1
CNY59.84 (CNY67.62 含税)
添加部件编号/注释行
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
该代码将添加到订单确认、发票、发货通知、订单确认电子邮件和产品标签中。
产品信息
产品概述

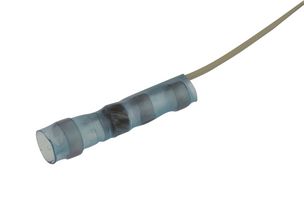

The D-181-1224-90/9 is a 3.7mm SolderSleeve Coax Terminator with heat shrink radiation-cross-linked polyvinylidene fluoride insulation sleeve, fluorocarbon-based thermoplastic meltable rings, pre-installed lead and Sn63 solder termination. This D-181 series terminator for use in terminating the silver/tin conductor and shield plating of a coaxial cable and temperature of cable rated for at least 125°C.
- White/white with black stripe lead color
- Stranded lead
- 24AWG Pre-installed lead wire size
- Immersion protection resistance
- 150°C Operating temperature
法律与环境
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：稍后通知
RoHS 邻苯二甲酸盐合规:稍后通知
