需要更多?
数量 | 价钱 (含税) |
---|---|
1+ | CNY74.090 (CNY83.7217) |
5+ | CNY70.780 (CNY79.9814) |
10+ | CNY68.690 (CNY77.6197) |
20+ | CNY68.230 (CNY77.0999) |
50+ | CNY67.760 (CNY76.5688) |
产品信息
产品概述

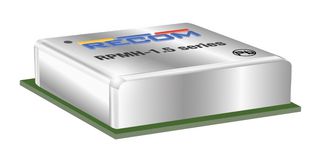

RPMH5.0-1.5-CT is a RPMH-1.5 series DC/DC converter. It is a wide input voltage, 1.5A non-isolated switching regulator power module. The module accepts up to 60VDC input and provides a trimmable output from 2.6 up to 28VDC and comes complete with a full set of features including adjustable output, on/off control, and power good signals. The ultra-compact module has a profile of only 3.75mm, but with an efficiency of up to 97%, the device can operate at full load in ambient temperatures as high as +100°C and with power derating up to 105°C without forced air cooling. The package is complete with 6-sided shielding for optimal EMC performance and excellent heat management.
- Wide input voltage of 7 to 60VDC, 5VDC output voltage
- High power density (LxWxH = 12.19x12.19x3.75)
- Wide operating temperature -40°C to 100°C at full load
- 1.5A output current
- Thermally and EMI enhanced 25 pad LGA package
- Dimension (LxWxH) is 12.19 x 12.19 x 3.75mm
- 3 year warranty
技术规格
ITE
1输出
5V
固定、可调节
7V
12.19mm
3.75mm
No SVHC (21-Jan-2025)
模块
7.5W
1.5A
表面安装设备
60V
12.19mm
RPMH-1.5 Series
技术文档 (1)
法律与环境
进行最后一道重要生产流程所在的地区原产地:Slovak Republic
进行最后一道重要生产流程所在的地区
RoHS
RoHS
产品合规证书
