产品信息
产品概述

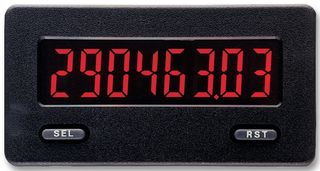

The CUB5B000 is a 8-digit CUB®5 miniature electronic Dual Counter and Rate Indicator with backlight display. It provides the user the ultimate in flexibility, from its complete user programming to the optional set-point control and communication capability. The meter can be programmed as a single or dual counter with rate indication capability. The display can be toggled either manually or automatically between the selected displays. When programmed as a dual counter has a separate scale factor and decimal points. In the counter/rate indicator mode, has its own scaling and decimal point read-outs in different engineering units. The internal batch counter can be used to count set-point output activations. The meter has two separate inputs which provide different functions depending on which operating mode is selected. Transmissive LCD with selectable red/green LED backlight, viewing angle optimized. Display colour change capability with output state when using an output module.
- Programmable scaling for count and rate
- Bidirectional counting, up/down control
- Quadrature sensing (up to 4 times resolution)
- Built-in batch counting capability
- Display colour change capability at set-point output
- Preset capability with optional output card
- Front panel programming
- Decimal points and scaling
- IP65/NEMA-4X Protection rating
应用
工业, 计量
警告
请勿使用该仪表直接命令未配备安全装置的电机, 阀门或其他执行器. 如果仪表出现故障, 可能对人员/设备造成危害.
技术规格
8
9VDC
33mm
-35°C
CUB5 Series
11.7mm
28VDC
68mm
75°C
No SVHC (08-Jul-2021)
技术文档 (1)
法律与环境
进行最后一道重要生产流程所在的地区原产地:United States
进行最后一道重要生产流程所在的地区
RoHS
RoHS
产品合规证书
