RTE0T0002LKCE00000R

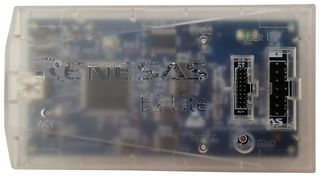

RTE0T0002LKCE00000R E2 emulator Lite is an on-chip debugging emulator and flash programmer for MCUs of the RX, RA, RL78 Families and RISC-V MCU. This model provides standard debugging functions at low cost, and is suitable for a wide range of situations, such as education, initial evaluation, and full-scale product development.

• USB 2.0, full speed PC interface
• Operating voltage range: 1.8V to 5.5V (depends on the target MCU)
• Power supply from emulator - supply current: up to 200mA, supply voltage: 3.3V only
• External dimension (except for the protruding parts): 96.2mm×52.7mm×17.2mm
• Compliance European standards: EN 55022 class A, EN 55024, US FCC standard: FCC part 15 Class A
• Affordable yet powerful debugger functionality that meets actual development needs
• Also usable as an on-board programmer
• Supports serial, JTAG, and SWD communications interfaces

内容

E2 emulator Lite main unit, USB interface cable, User system interface cable.
