R&S NGA102

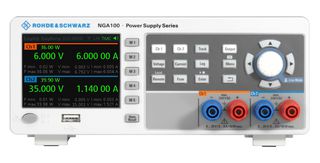

NGA100 series two-channel power supply is a linear, compact and easy to use power supply. It has excellent readback accuracy with a low-current range for demanding measurements. Features such as data logging, arbitrary waveforms, built-in statistics and remote sensing make the instruments ideal for various bench applications. Equipped with a number of different remote interfaces, including USB and Ethernet, the R&S®NGA100 power supplies are also great for automated tests. Advanced protection functions keep devices connected and power supplies safe.

• Maximum 80W total output power
• Maximum 35V or maximum 6A per output
• Maximum 70V in serial or maximum 12A in parallel mode
• Integrated statistics show the minimum and maximum values for power, voltage and current
• 3.5" QVGA display
• Rack mountable
• EasyRamp, EasyArb and datalogging feature
• Remote sensing and tracking
• Easily store and recall up to 5 common instrument settings with five memory keys on the front panel
• OCP, OVP, OPP protection

内容

Power supply, Set of power cables, Terminal blocks, Quick start guide.
