DTM36CN120C8

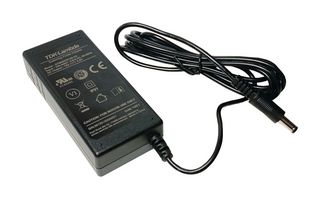

DTM36CN120-C8 is a DTM36-C8 series medical external power supply. The DTM36-C8 Class II external power supply is certified to IEC/ES/EN60601-1 and EN60601-1-11, compliant to EN60601-1-2 (Ed4) and designed to meet IEC60335-1 (household appliances). Requiring no earth ground, the DTM series is ideally suited for medical, clinical and home healthcare applications. It includes overcurrent and overvoltage protection.

• Input voltage range from 80 to 264VAC, output voltage is 12V
• Maximum current is 2.5A, maximum power is 30W
• Efficiency is 89% (230Vac input, 75% Load)
• Medical safety certifications and immunity, suitable for medical, clinical and home healthcare use
• Class II input, no earth ground connection needed
• Meets DoE level VI and EU tier 2 efficiency, <lt/>75mW off-load power consumption
• Meets US and EU energy saving legislation, typical switching frequency is 65KHz
• 4kV (2xMOPP) input to output isolation, fully isolated for use with B and BF rated equipment
• Flexible system integration, IP21 rated
• Operating temperature range from -30 to 60°C, size (LxWxH) is 100 x 45 x 22.5mm, 3 years warranty
