156666-1
快速断开端子, PIDG FASTON 250, 母式旗式断开, 6.35mm x 0.81mm, 0.25" x 0.032", 16 AWG, 14 AWG
需要更多？
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY9.270 (CNY10.4751) |
| 10+ | CNY7.620 (CNY8.6106) |
| 25+ | CNY7.070 (CNY7.9891) |
| 50+ | CNY6.680 (CNY7.5484) |
| 100+ | CNY6.650 (CNY7.5145) |
产品信息
产品概述

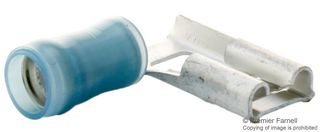

The 156666-1 is a PIDG insulated Faston flag receptacle Wire Crimp Terminal with a mating area interface of 6.35x0.81mm and 16 to 14AWG wire size. The pre-insulated terminal is designed for complete and uniform reliability in most difficult circuit environments. Each PIDG terminal consists of a tin-plated brass body with a specially designed copper sleeve and insulation sleeve fitted over the terminal barrel. The design of the tool dies and the construction of the terminal promotes uniform insulation thickness under crimping pressure, transmitting this pressure evenly to the centre of the crimp area. The resulting termination is free of contamination, is resistant to shock and critical environments and its tensile strength approaches that of the wire itself.
- Straight terminal angle
- 300V Maximum voltage
技术规格
PIDG FASTON 250
6.35mm x 0.81mm
16AWG
蓝色
尼龙 (聚酰胺)
No SVHC (21-Jan-2025)
母式旗式断开
0.25" x 0.032"
14AWG
2mm²
黄铜
156666-1 的替代之选
找到 2 件产品
相关产品
找到 5 件产品
法律与环境
进行最后一道重要生产流程所在的地区原产地：United States
进行最后一道重要生产流程所在的地区
RoHS
RoHS
产品合规证书
