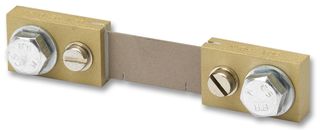

861-92MG-NWEF
分流, DIN 43703, 60mV, 60 A, 0.5 %, -20 °C, 60 °C, 860 Series
有货时请通知我
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY281.390 (CNY317.9707) |
| 5+ | CNY268.880 (CNY303.8344) |
| 10+ | CNY255.940 (CNY289.2122) |
| 20+ | CNY236.510 (CNY267.2563) |
产品信息
产品概述
The 861-92MG-NWEF is a Current Shunt designed and manufactured to comply with the requirements of DIN43 703 this range of shunts provides an accurate DC millivolt signal, exactly proportional to the system current, to drive ammeter indicators, overload protection and control devices. Highest quality materials, rugged design and advanced manufacturing techniques are used throughout. The substantial solid brass end blocks have conservatively rated contact surface areas and fixing-hole dimensions to DIN 43703 for maximum long term stability and strength, copper manganese resistance elements are both riveted and soldered into slots in the end blocks.
- Shock and vibration tested
- Low temperature coefficient
- Long term stability
- 501 to 2000A = 5 x Rated current
警告
分流器是非绝缘型, 为了符合健康和安全规定, 可能需要额外防护措施, 防止意外接触.
注释
校准服务可用于此产品. 可选择标准认证服务, 或国际认可的UKAS认证校准. 请访问我们的校准页面去了解更多详情.
技术规格
60A
-20°C
860 Series
0.5%
60°C
技术文档 (1)
法律与环境
进行最后一道重要生产流程所在的地区原产地：Great Britain
进行最后一道重要生产流程所在的地区
产品合规证书
