DRV8711EVM

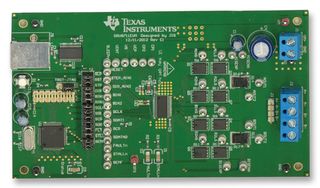

The DRV8711EVM is a complete solution for evaluating the DRV8711 stepper motor controller. The DRV8711 is a stepper motor controller using external N-channel MOSFETs to drive a bipolar stepper motor or two brushed DC motors. A micro stepping indexer is integrated, supporting up to 1/256 microstep. The DRV8711 is capable of providing ultra smooth motion profile, and motor stall can be monitored with onboard LED. The DRV8711 is simply programmed and controlled by the MSP430 through the GUI. Power is provided externally, up to 52V, through the power header. A stepper motor is included in the EVM for controller performance evaluation. GUI defaults to optimum settings matched to the included motor. The EVM can also be configured to drive dual DC motor through a PWM control tab on the GUI.

• Built in 1/256 step microstepping indexer
• N-channel NexFET power MOSFETs
• Ultra-smooth motion profile
• Integrated stall detection reported on logic-level output pin
• Complete protection and diagnosis
• User-friendly GUI
• Stepper motor included
• Configurable for dual DC motor control
• 8V to 52V operating supply voltage range
• Scalable output current

应用

工业, 自动化与过程控制, 电机驱动与控制, 机器人

内容

DRV8711 evaluation board, Stepper Motor, USB Cable.
