产品信息
产品概述

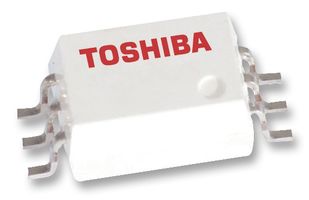

The TLP700(F) is a 1-channel 6-pin Photocoupler consists of a GaAIAs light-emitting diode and an integrated photodetector. The TLP700 is 50% smaller than the 8-pin DIP and meets the reinforced insulation class requirements of international safety standards. Therefore the mounting area can be reduced in equipment requiring safety standard certification. It is suitable for gate driving circuits for IGBTs or power MOSFETs. In particular, the TLP700 is capable of direct gate driving of low-power IGBTs.
- ±2A Maximum peak output current
- 2mA Maximum supply current
- 5mA Maximum threshold input current
- 500ns Maximum switching time (tpLH/tpHL)
- ±10kV/μs Minimum common-mode transient immunity
警告
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
技术规格
针脚数
6引脚
隔离电压
5kV
法律与环境
原产地:
进行最后一道重要生产流程所在的地区原产地:Japan
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地:Japan
进行最后一道重要生产流程所在的地区
税则号:85414900
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规:是
RoHS
RoHS 邻苯二甲酸盐合规:稍后通知
下载产品合规证书
产品合规证书
重量(千克):.000547
