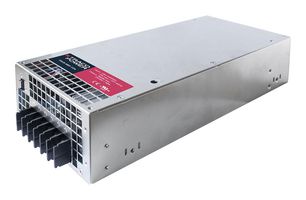

TXLN 960-124

TXLN 960 series is a family of encased power supplies designed for a wide range of cost critical applications. With a low profile metal case and screw terminal block connection, they are easy to install in any equipment. These power supplies have universal input (90-264VAC) and comply with European EMC standards and the Low Voltage Directive (LVD).

• Active PFC <gt/>0.95
• High efficiency up to 88%
• Compliance to EN 61000-3-2
• Short circuit, overvoltage and overload protection
• IEC/EN/UL 62368-1 safety approvals
• 3 year product warranty
• Protection class I (prepared): connection to PE
• Pollution degree PD 2, overvoltage category OVC II
• Operating temperature range from -20°C to +70°C, switching frequency of 55KHz to 65KHz (PWM)
• Aluminium housing, screw terminal connection type
