278-475-000

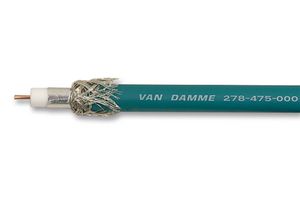

同轴电缆, RG11, 75 ohm
- 制造商：
- VAN DAMME VAN DAMME
- 制造商产品编号:
- 278-475-000
- 库存编号
- 2425044
- 产品范围
- Van Damme HD Vision
- 技术数据表:
- 278-475-000 Datasheet
产品范围选择器 (Van Damme HD Vision)
查看全系列相关产品产品信息
技术文档 (1)
CAD 下载
--请选择...
✔
--请选择...
×
条款
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
产品概述
The 278-475-000 is a Coaxial Cable with bare ultra pure oxygen-free copper conductor and a gas-injected foam skin polyethylene dielectric.
- CPR: Not Yet Qualified
- <8.2R/km Conductor resistance
- 4.9R/km Shield resistance
- >5000MR/km Insulation resistance
- 1000VDC (1 minute OK) Voltage test
- 52pF/m Capacitance
- 85% Velocity of propagation
应用
信号处理
