20-313139

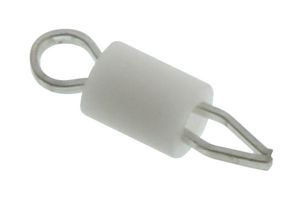

电路板测试点, 白色, 通孔安装, 1.02 mm, 磷青铜, 镀锡触芯
产品信息
技术文档 (1)
CAD 下载
--请选择...
✔
--请选择...
×
条款
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
产品概述
The 20-313139 is a white PCB test-point Loop Terminal Assembly for 1.02mm hole size. This PCB test point is used for attaching leads for test scopes and probes with scintered glass insulator. The sintered glass bead has a recommended maximum working temperature of 475°C. This exceeds all current standard temperature profile requirements.
- Compliant pin design allows terminal to be inserted without damaging hole plating
- Terminal will remain in place even when the board is inverted for soldering
- Borosilicate sintered glass bead
- Phosphor bronze (BS2873) wire loop with (3 to 5µ) electroplated bright tin plating
- PCB thickness: <1.6mm
应用
工业
畅销品
1,909 有货 需要更多？
×
您现在可以预订货品了 订购所需的数量并按正常方式结算。目前无法交付的数量将列入延期交货订单中，并在到货后立即发货。
交付周期内有额外库存， 交付周期大约为 22-8-15
932 SG 有库存，可在 3-4 个工作日内发货
977 UK 有库存，可在 5-6 个工作日内发货
977 UK 有库存，可在 5-6 个工作日内发货
由于市场条件的影响，交货时间仅供一般指导，可能会在短时间内发生变化
| 数量 | 价钱 (不含税) (含税) | 您所支付金额（含增值税） (不含税) |
|---|---|---|
| 1+ | CNY265.50 CNY300.02 | ( ) |
| 10+ | CNY261.80 CNY295.83 | ( ) |
| 20+ | CNY257.30 CNY290.75 | ( ) |
| 50+ | CNY248.40 CNY280.69 | ( ) |
