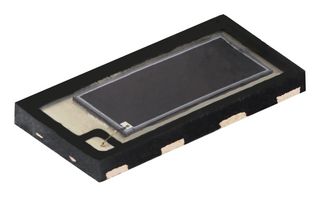

VEMD8080
光电二极管，硅引脚，65°，0.2 nA，850 nm，顶视SMD，8 引脚，-40 °C 至 85 °C
产品信息
制造商VISHAY
制造商产品编号VEMD8080
库存编号3588569RL
技术数据表
针脚数8引脚
二极管封装类型SMD
峰值灵敏度波长850nm
半灵敏度角度±65°
暗电流0.2nA
工作温度最小值-40°C
工作温度最高值85°C
产品范围-
汽车质量标准-
MSLMSL 3 - 168小时
SVHC(高度关注物质)No SVHC (07-Nov-2024)
产品概述
VEMD8080 is a silicon PIN photodiode. This is a high speed and high sensitive PIN photodiode with enhanced sensitivity for visible light. It is a low profile surface-mount device (SMD) including the chip with a 4.5mm² sensitive area detecting visible and near infrared radiation. Application includes high speed photo detector, wearables.
- 0.48mm low profile package, enhanced sensitivity for visible light
- Suitable for visible and near infrared radiation, fast response times
- Surface-mount package type, top view package form
- Angle of half sensitivity is ±65deg (typ, Ta=25°C), forward voltage is 1.2V (typ, IF=50mA, Ta=25°C)
- Reverse dark current is 0.2nA (typ, VR = 10V, E = 0, Tamb = 25°C)
- Diode capacitance is 47pF (typ, VR = 0V, f = 1MHz, E = 0, Tamb = 25°C)
- Open circuit voltage is 320mV (typ, Ee = 1mW/cm², λ = 950nm, Tamb = 25°C)
- Rise time is 70ns (typ, VR = 10V, RL = 1Kohm, λ = 830nm, Tamb = 25°C)
- Operating temperature range from -40 to +85°C
技术规格
针脚数
8引脚
峰值灵敏度波长
850nm
暗电流
0.2nA
工作温度最高值
85°C
汽车质量标准
-
SVHC(高度关注物质)
No SVHC (07-Nov-2024)
二极管封装类型
SMD
半灵敏度角度±
65°
工作温度最小值
-40°C
产品范围
-
MSL
MSL 3 - 168小时
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：Philippines
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：Philippines
进行最后一道重要生产流程所在的地区
税则号：85414900
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:No SVHC (07-Nov-2024)
下载产品合规证书
产品合规证书
重量（千克）：.004536
