1SD26-3120-00C-500
计算机线缆, SDR 插头, 26路, SDR 插头, 26路, 16.4ft, 5m, 灰色
- 制造商：
- 3M 3M
- 制造商产品编号:
- 1SD26-3120-00C-500
- 库存编号
- 2360046
- 产品范围
- 1SD26
- 也称为:
- GTIN UPC EAN: 00051111055144 JE150374724
- 技术数据表:
- 1SD26-3120-00C-500 Datasheet
产品范围选择器 (1SD26)
查看全系列相关产品产品信息
技术文档 (1)
CAD 下载
--请选择...
✔
--请选择...
×
条款
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
产品概述

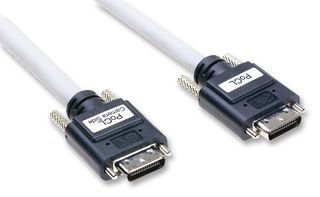

The 1SD26-3120-00C-500 is a 500m 26-position standard digital camera SDR (Shrunk delta ribbon) Cable Assembly with PoCL compatible. It has straight through male to male connectors. The device carries power in addition to signal to enable use in base configuration Power over Camera Link® (PoCL) applications and connects to Mini-Camera Link style (SDR) I/O ports on both PoCL camera and PoCL framegrabber.
- 3 Shielded quads and 6 unshielded twisted pairs
- Entire cable bundle shielded with foil and braid for additional signal protection
- Rugged ribbon type contact for reliable, repeatable connectivity
- Thumbscrew retention
- EMI shielded end-to-end for reduced emissions
- 30V Voltage rating
- 0.5A Current rating
- 28AWG Stranded conductor size
- 50ps/m Maximum skew (within pair)
- 100ps/m Maximum skew (channel skew per chipset)
- 0 to 70°C Temperature range
应用
通信与网络, 成像, 视频和目视, 信号处理, 计算机和计算机周边, 工业
也称为
GTIN UPC EAN: 00051111055144 JE150374724
可延期交货
由于市场条件的影响，交货时间仅供一般指导，可能会在短时间内发生变化
| 数量 | 单价（含增值税） | 您所支付金额（含增值税） |
|---|---|---|
| 1+ | CNY1,112.33 (CNY1,256.93) | ( ) |
| 10+ | CNY1,046.76 (CNY1,182.84) | ( ) |
| 25+ | CNY1,013.97 (CNY1,145.79) | ( ) |
| 50+ | CNY948.60 (CNY1,071.92) | ( ) |
定价不可用。 请联系客户服务。
