MAX98380EVSYS#

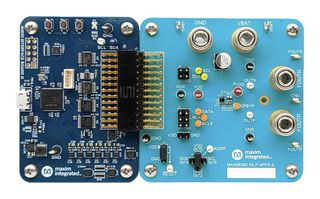

MAX98380EVSYS# is a Fully assembled and tested MAX98380 evaluation system to evaluate the MAX98380 boosted Class-D audio amplifier. The EV system consists of the MAX98380 development board (DEV board), Analog Devices Audio Interface Board III (AUDINT3), and a USB cable. It is recommended that the DEV board be evaluated with the AUDINT3 board, as an EV system. The MAX98380 supports standard I2S, left-justified, and TDM digital audio interfaces. The AUDINT3 board provides a USB-to-PCM interface in addition to a 1.8V VDD supply needed to evaluate the DEV board. The MAX98380 DEV board requires one additional supply input, 2.5V to 5.5V (VBAT) when evaluating using the AUDINT3 board.

• 2.5V to 5V single-supply operation
• USB audio streaming (EV system)
• I2S, left-justified, or TDM input
• Capacitive charge pump boost circuitry
• Fully assembled and tested

内容

MAX98380 development board, Audio interface board III, Micro-USB cable.
