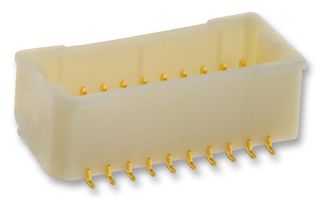

BM20B-SRDS-G-TF(LF)(SN)

The BM20B-SRDS-G-TF(LF)(SN) is a 2-contact 1mm pitch 2-row Crimp Connector, 1A, 50V rated. This SHD compact disconnectable wire to board Connector is made of gold plated nickel undercoated phosphor bronze header contact, ivory PA wafer, tin plated copper undercoated brass solder tab having top entry PC board mounting direction, although shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely affect vacuum gripping equipment and, the receptacle has protrusions on both ends for an operator to disengage the receptacle from the header without holding the wire and 28AWG applicable wire gauge.

• Anti-misinsertion feature
• 20Ω Maximum contact resistance
• 100MΩ Minimum insulation resistance
• -25 to 85°C Operating temperature range
