产品信息
制造商KNIPEX
制造商产品编号76 22 125
库存编号2851479
也称为GTIN UPC EAN: 4003773048022
技术数据表
切割类型精密
全长125mm
切面类型对角
切割能力最大值2.5mm
刃口硬度63°
产品范围-
SVHC(高度关注物质)No SVHC (27-Jun-2018)
产品概述

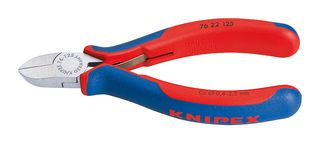

76 22 125 is a diagonal cutter for electromechanics. Its cutting edges are additionally induction-hardened, with cutting edge hardness approx. 63 HRC. It has sharp, precisely aligned cutting edges for soft, hard and piano wire.
- Without bevel for flush cutting of soft wires and low-friction double spring for gentle even opening
- Cutting capacity - up to 3/32" for soft wire
- Vanadium steel, forged, multi stage oil-hardened
- Polished head, with multi-component grips handles
- DIN ISO 5749 standard, rivet joint type
- Dimension is 125 x 57 x 19mm
- 5/8" jaw length, 23/64" jaw thickness, 23/64" tip thickness
- 37/64" tip width, 5/8" blade length
警告
Do no use on live circuits. Always switch off power. Always wear approved eye protection.
技术规格
切割类型
精密
切面类型
对角
刃口硬度
63°
SVHC(高度关注物质)
No SVHC (27-Jun-2018)
全长
125mm
切割能力最大值
2.5mm
产品范围
-
技术文档 (1)
法律与环境
原产地:
进行最后一道重要生产流程所在的地区原产地:Germany
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地:Germany
进行最后一道重要生产流程所在的地区
税则号:82032000
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规:不适用
RoHS 邻苯二甲酸盐合规:不适用
SVHC:No SVHC (27-Jun-2018)
下载产品合规证书
产品合规证书
重量(千克):.107
