图片仅用于图解说明,详见产品说明。
不再進貨
产品信息
制造商LABFACILITY
制造商产品编号XF-1047-FAR
库存编号2772004
也称为MB-GSK-S05-250-MP-I
技术数据表
热电偶类型K
测量温度最小值-
最低感应温度-40°C
最高感应温度750°C
测量温度最大值-
传感器本体材料不锈钢
引线长度 - 英制-
引线长度 - 公制-
探头长度-英制9.84"
探头长度-公制250mm
探头直径-英制0.02"
探头直径-公制0.5mm
绝缘-
热电偶端子微型连接器
热电偶导线标准-
热电偶屏蔽屏蔽
产品范围-
SVHC(高度关注物质)No SVHC (21-Jan-2025)
产品概述

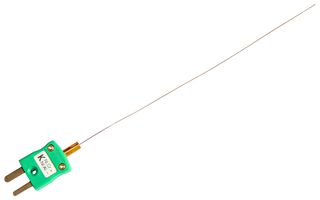

XF-1047-FAR is an IEC mineral insulated thermocouple with miniature thermocouple plug Type K (grounded junction). 310 stainless steel material provides good corrosion and oxidation resistance to suit a wide range of processes, satisfactorily operates in sulphur bearing atmospheres. Typical applications include brick and cement kilns, glass industry, heat treatment and annealing furnaces, power stations, flues, heat exchangers etc.
- 250mm probe length
- Miniature flat pin plug termination, colour coded ‘green’ in accordance IEC 584
- Fast response Type ‘K’ Thermocouple, 0.5mm diameter with grounded hot junction
- Flexible mineral insulated probe with 310 stainless steel sheath construction
- Highly flexible, sheath can be bent/formed to suit many applications and processes
- Hot junction of thermocouple grounded to outer sheath for very fast response
- Probe temperature range from -40°C to +750°C, miniature plug termination (200°C)
- Conforms to IEC 584 specification
- Sensor type is Type ‘K’ (nickel chromium/nickel aluminium) to IEC 584
- Single element, hot junction grounded to sheath
技术规格
热电偶类型
K
最低感应温度
-40°C
测量温度最大值
-
引线长度 - 英制
-
探头长度-英制
9.84"
探头直径-英制
0.02"
绝缘
-
热电偶导线标准
-
产品范围
-
测量温度最小值
-
最高感应温度
750°C
传感器本体材料
不锈钢
引线长度 - 公制
-
探头长度-公制
250mm
探头直径-公制
0.5mm
热电偶端子
微型连接器
热电偶屏蔽
屏蔽
SVHC(高度关注物质)
No SVHC (21-Jan-2025)
法律与环境
原产地:
进行最后一道重要生产流程所在的地区原产地:Great Britain
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地:Great Britain
进行最后一道重要生产流程所在的地区
税则号:90330090
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规:是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:No SVHC (21-Jan-2025)
下载产品合规证书
产品合规证书
重量(千克):.02268
