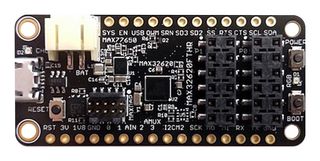

MAX32620FTHR#

评估板, MAX32620 MCU, 带FPU, 0.9英寸x 2英寸DIP外形

图片仅用于图解说明,详见产品说明。

制造商产品编号:
MAX32620FTHR#
库存编号
2842117
查看所有技术文档

产品概述

The MAX32620FTHR# from Maxim Integrated Products is an evaluation Kit for the MAX32620 device. This evaluation board is a rapid development platform designed to help engineers quickly implement battery optimized solutions with MAX32620 Arm® Cortex®-M4 microcontroller with FPU. The board also includes the MAX77650 ultra-low power PMIC and MAX17055 fuel gauge to provide efficient power conversion and battery management with minimal board space. The form factor is a small 0.9in x 2.0in dual-row header footprint that is compatible with breadboards and off-the-shelf peripheral expansion boards. Typical applications include fitness monitors, portable medical devices, sensor hub, sport watches, wearable and medical patches.
  • Convenient development platform
  • Breadboard and feather wing compatible
  • Pmod compatible sockets
  • Supports SPI, UART, I2C and GPIO
  • Accessible from both sides of board
  • Integrated battery management (single cell Li+ charger, fuel gauge)
  • User interface peripherals (two RGB LEDs, two pushbuttons)
  • 12-pin Pmod™ compatible socket connectors
  • Single-Cell Li+ charger with fuel gauge

应用

医用, IoT (物联网), 电子设计

产品信息

想要查看类似产品?只需在下方选择所需属性并点击按钮 ×


:
Maxim Integrated Products

:
MAX32620/MAX77650/MAX17055

:
内嵌

:
快速开发平台 - 电池优化解决方案

:
ARM

:
Cortex-M4

:
-

:
Eval Board MAX32620/MAX77650/MAX17055

:
-

查找类似产品 选择并修改以上属性即可查找类似产品。

技术文档 (2)

8 有货 需要更多?

8 可于 4 至 5 个工作日内送达

CNY175.08 ( CNY197.84  含增值税)

定价不可用。 请联系客户服务

包装规格:
每个
多件: 1 最低: 1
数量 单价(含增值税) 您所支付金额(含增值税)


1+ CNY175.08 (CNY197.84)
