ACH4518-333-TD01

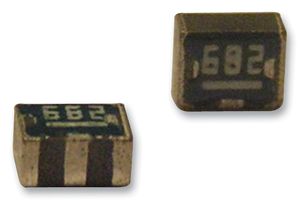

The ACH4518-333-TD01 is a 3-terminal SMD Power Line Filter for signal line. It consists of products with superior attenuation characteristics, in which the T-type filter circuit is magnetically shielded with ferrite. It is ideal for high-density circuit design, since the series is vertically mounted and does not require much mounting space.

• Offers greater attenuation characteristics when used in a stable circuit on the ground
• 0.04Ω Maximum DC resistance
• 1000MΩ Minimum insulation resistance
• -40 to 125°C Operating temperature range

注释

不建议用于新设计.
